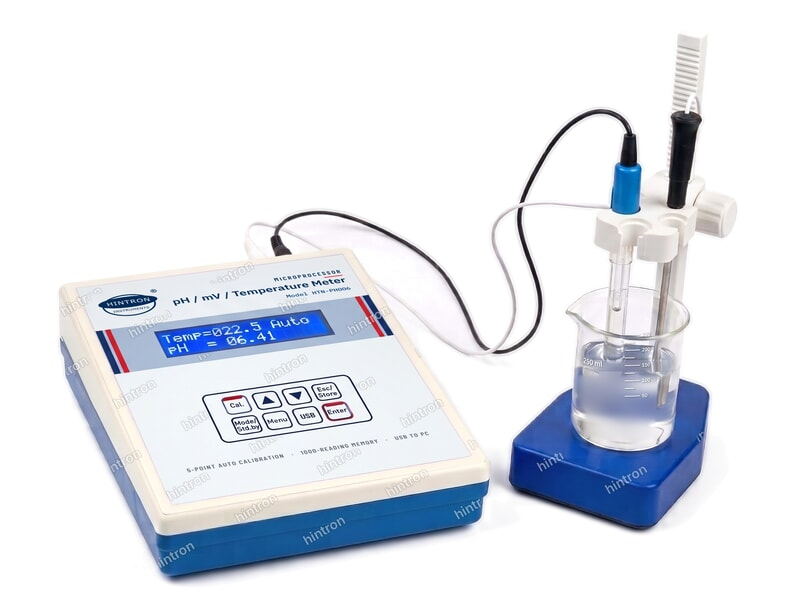

Benchtop microprocessor meter that reads pH, mV and temperature on a jumbo 16 × 2 backlit LCD. Up to 5-point pH calibration, automatic with pH 4.00, 7.00, 9.20, 10.00 and 12.45 buffers, which the meter recognises on its own, or manual. Automatic temperature compensation with the temperature probe. Stores 1000 readings with date and time and transfers them to a computer over USB, with PC software to import readings into a computer. Supplied with a combination pH electrode, temperature probe, electrode stand, standard buffers for 5-point calibration, USB cable and software. 230 V AC.
Non-returnable
Downloads
Application Industry
PharmaceuticalFood, dairy and beveragesWater and environmentEducation and researchAgriculture and soil Parameters Measured
pHTemperaturemVORP Product Details
Specifications
Product Details
Product Details
The Hintron microprocessor pH, mV and temperature meter is a benchtop instrument for laboratories that calibrate across the whole pH range and keep a record of their readings. Up to five buffers can be used for calibration, readings are stored with date and time, and the data goes to a computer over USB.
Measurement
- pH: 0 to 14.00 pH, resolution 0.01 pH, accuracy ±0.01 pH (relative)
- mV (ORP): 0 to ±1999 mV, resolution 1 mV, accuracy ±1 mV
- Temperature: 0 to 100.0 °C, resolution 0.1 °C, accuracy ±0.5 % ±1 digit
- Temperature compensation of pH: automatic with the temperature probe; fixed at 20 °C when no probe is connected
- Slope correction: 80 % to 120 % (100 % by default)
Calibration
- pH: up to 5 points, automatic or manual
- Automatic buffer recognition: pH 4.00, 7.00, 9.20, 10.00 and 12.45
- mV and temperature: manual
- Reset to factory calibration from the menu
Memory and computer link
- 1000 readings stored with date and time
- USB interface, with PC software to import readings into a computer
General
- Display: jumbo 16 × 2 alphanumeric backlit LCD, menu driven
- Keypad: 8 soft-touch membrane keys
- Power: 230 V ±10 % AC, 50 Hz
Supplied with
- pH, mV and temperature meter
- Combination pH electrode
- Temperature probe
- Electrode stand
- Standard buffers for 5-point calibration
- USB cable
- PC software for importing data
- Operation manual
Intended for industrial and laboratory use only, not for clinical use.
Specifications
Specifications
Measurement
- CalibrationpH 5-point, automatic or manual · mV manual · Temperature manual
- Range0 to 14.00 pH · 0 to ±1999 mV · 0 to 100.0 °C
- Resolution0.01 pH · 1 mV · 0.1 °C
- Accuracy±0.01 pH (relative) · ±1 mV · ±0.5 % ±1 digit
- Temperature compensationAutomatic with the temperature probe; fixed at 20 °C when no probe is connected · — · —
- Buffer recognitionAutomatic for pH 4.00, 7.00, 9.20, 10.00 and 12.45 · — · —
- Slope correction80 % to 120 % (100 % by default) · — · —
- InputCombination pH electrode (supplied) · — · Temperature probe (supplied)
General
- Form factorBenchtop
- DisplayJumbo 16 × 2 alphanumeric backlit LCD
- Power230 V ±10 % AC, 50 Hz
- Controls8 soft-touch membrane keys
Data and connectivity
- Memory1000 readings, each with date and time
- InterfaceUSB, with PC software to import readings into a computer
