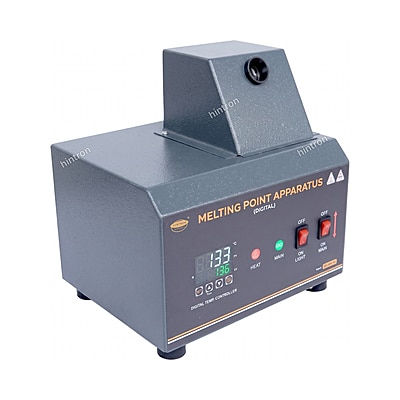

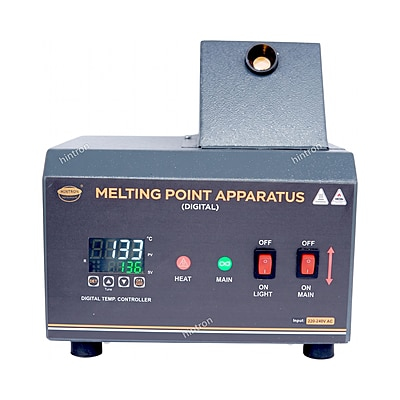

A digital melting point apparatus with an aluminium heating block, from ambient to 270 °C, and a digital controller with a J-type sensor that shows process and set temperature. Three standard capillary slots and one slot for capillaries up to 6 mm sit in the top block, with internal lighting and a built-in lens for a clear view of the sample. Works on 220 to 240 V AC, 50/60 Hz. Intended for industrial and laboratory use only, not for clinical use.
Tags:
Downloads
Application Industry
PharmaceuticalEducation and researchFood, dairy and beverages Product Details
Specifications
Product Details
Product Details
A digital melting point apparatus with an aluminium heating block, from ambient to 270 °C, and a digital controller with a J-type sensor that shows process and set temperature. Three standard capillary slots and one slot for capillaries up to 6 mm sit in the top block, with internal lighting and a built-in lens for a clear view of the sample. Works on 220 to 240 V AC, 50/60 Hz.
For industrial and laboratory use only, not for clinical use.
Features
- Ambient to 270 °C
- Digital temperature controller with J-type sensor
- Aluminium block for uniform heating
- 3 slots for standard capillaries, 1 slot for capillaries up to 6 mm
- Internal illumination with its own switch
- Built-in magnifying lens
- Heat and mains lamps; light and mains switches
- Powder-coated MS body
Applications
Melting point determination for purity checks in pharmaceutical, chemical, quality control and teaching laboratories.
Specifications
Specifications
Measurement
- RangeAmbient to 270 °C
- Temperature controlDigital controller, J-type sensor
- Heating blockAluminium
- Capillary slots3 standard + 1 up to 6 mm
- ViewingBuilt-in magnifying lens
General
- Form factorBenchtop
- Power220 to 240 V AC, 50/60 Hz
- HousingMild steel, powder coated
- LightingInternal, with on/off switch
