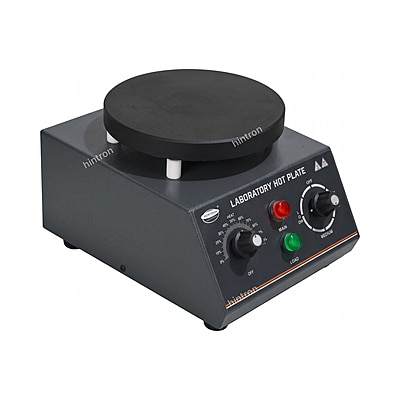

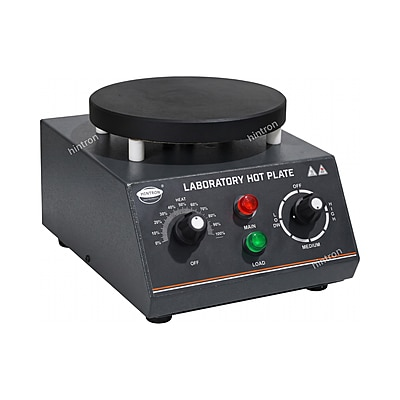

A round-top laboratory hot plate with an 8 inch cast iron plate for general heating, from 0 to 300 °C. An energy regulator sets the heat from 0 to 100 %, and a low, medium and high selector sets the heating range. Main and load lamps show power and heating, and the mild steel body is powder coated. Works on 230 V AC, 50 Hz. For laboratory use only.
Tags:
Downloads
Application Industry
Education and researchPharmaceuticalFood, dairy and beverages Product Details
Specifications
Product Details
Product Details
A round-top laboratory hot plate with an 8 inch cast iron plate for general heating, from 0 to 300 °C. An energy regulator sets the heat from 0 to 100 %, and a low, medium and high selector sets the heating range. Main and load lamps show power and heating, and the mild steel body is powder coated. Works on 230 V AC, 50 Hz.
For laboratory use only.
Features
- Temperature 0 to 300 °C
- Energy regulator, 0 to 100 %
- Low, medium and high heat selector
- 8 inch round cast iron top plate on insulated spacers
- Main and load indicator lamps
- Mild steel body, powder coated
Applications
Sample preparation, solution heating and evaporation in educational, R&D and industrial laboratories.
Specifications
Specifications
Performance
- Temperature range0 to 300 °C
- Temperature controlEnergy regulator, 0 to 100 %
- Heat selectorLow, medium, high
General
- Form factorBenchtop
- Top plate8 in round, cast iron
- Top plate supportInsulated spacers
- BodyMild steel, powder coated
- IndicatorsMain and load
- Power230 V AC, 50 Hz
