Benchtop digital pH meter with a 3½-digit red LED display. It measures 0 to 14.00 pH and 0 to +1999 mV, with 0.01 pH resolution and ±0.01 pH accuracy. Features two-point calibration with 80 % to 120 % slope correction, and manual or automatic temperature compensation from 0 to 100 °C (automatic with the Pt-100 probe). Intended for industrial and laboratory use only, not for clinical use.
Tags:
Temperature Compensation
Downloads
Product Details
Specifications
Product Details
Product Details

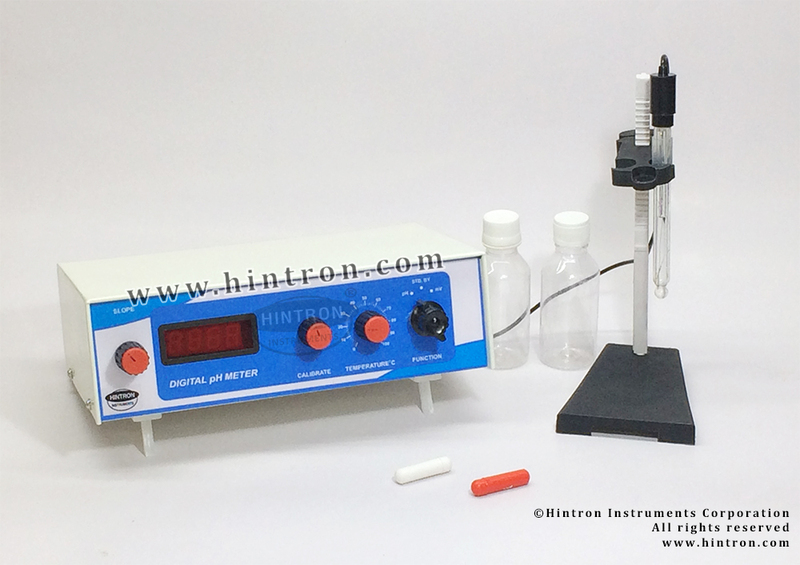

A benchtop digital pH meter for routine pH and mV measurement in pharmaceutical, water and environment and teaching laboratories. It reads 0 to 14.00 pH with 0.01 pH resolution and ±0.01 pH accuracy, and 0 to +1999 mV with 1 mV resolution, on a bright 3½ digit red LED display.
Calibrate and slope controls sit on the front panel, with slope correction from 80 % to 120 %. Two models: HTN-PH001 with manual temperature compensation, 0 to 100 °C, and HTN-PH002 with automatic and manual temperature compensation, 0 to 100 °C, using a Pt-100 temperature probe.
For industrial and laboratory use only, not for clinical use.

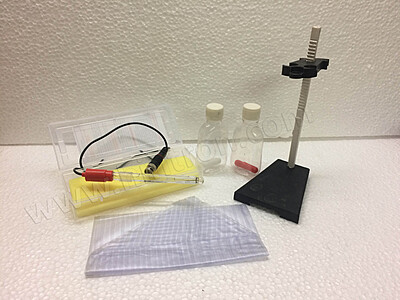

Supplied with
- Instrument
- Combined pH electrode with stand
- Pt-100 temperature probe (HTN-PH002 only)
- Buffer capsules with buffer bottles (pH 4 and pH 7)
- Operation manual
- Dust cover
Specifications
Specifications
Measurement
- Calibration2 points
- Range0 to 14.00 pH · 0 to +1999 mV
- Resolution0.01 pH · 1 mV
- Accuracy±0.01 pH · ±1 mV
- Temperature compensationManual 0 to 100 °C (HTN-PH001) · automatic and manual 0 to 100 °C with Pt-100 probe (HTN-PH002)
- Slope correction80 % to 120 %
General
- Form factorBenchtop
- Display3½ digit red LED
