Benchtop digital conductivity meter with five ranges from 0 to 200 µS/cm up to 0 to 1000 mS/cm, 0.1 µS/cm resolution and ±1 % of full scale ±1 digit accuracy. Features an adjustable cell constant, a platinum dip-type conductivity cell with stand, and manual or automatic temperature compensation from 0 to 100 °C (automatic with the Pt-100 probe). Intended for industrial and laboratory use only, not for clinical use.
Tags:
Temperature Compensation
Downloads
Product Details
Specifications
Product Details
Product Details
A benchtop digital conductivity meter for routine conductivity measurement of purified water, process water, effluent and solutions in pharmaceutical, water and environment, food and teaching laboratories. Five ranges cover 0 to 200 µS/cm, 0 to 2, 0 to 20 and 0 to 200 mS/cm, and 0 to 1000 mS/cm, with 0.1 µS/cm resolution on the lowest range and ±1 % of full scale ±1 digit accuracy.

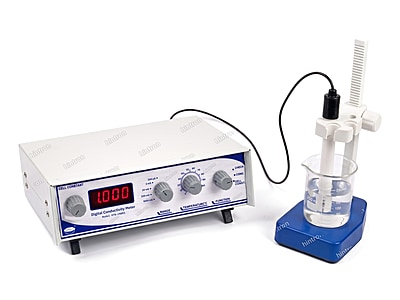

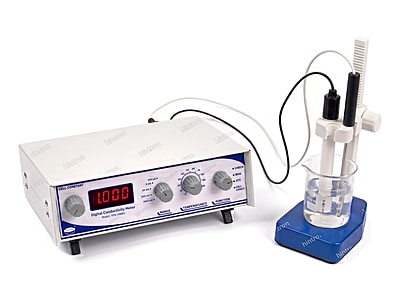

The cell constant is adjustable, so the meter can be matched to the conductivity cell in use. Two models: HTN-CN001 with manual temperature compensation, 0 to 100 °C, and HTN-CN002 with automatic and manual temperature compensation, 0 to 100 °C, using a Pt-100 temperature probe.
For industrial and laboratory use only, not for clinical use.
Supplied with
- Instrument
- Platinum dip-type conductivity cell with stand
- Pt-100 temperature probe (HTN-CN002 only)
- Operation manual
- Dust cover
Specifications
Specifications
Measurement
- Range0 to 200 µS/cm · 0 to 2 mS/cm · 0 to 20 mS/cm · 0 to 200 mS/cm · 0 to 1000 mS/cm
- Resolution0.1 µS/cm on the 0 to 200 µS/cm range
- Accuracy±1 % of full scale ±1 digit
- Temperature compensationManual 0 to 100 °C (HTN-CN001) · automatic and manual 0 to 100 °C with Pt-100 probe (HTN-CN002)
- Cell constantAdjustable
- Conductivity cellPlatinum dip-type cell with stand
General
- Form factorBenchtop
- Display3½ digit red LED
- Power230 V ±10 % AC, 50 Hz
