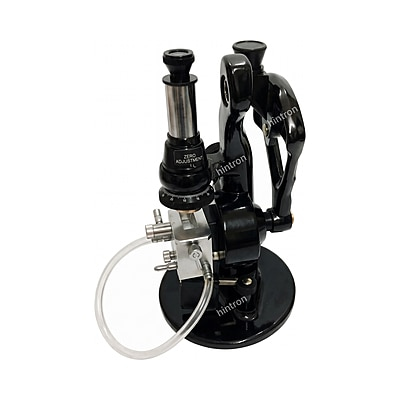

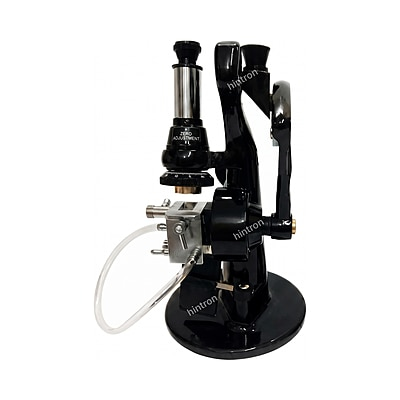

An Abbe refractometer for measuring the refractive index and Brix of liquids, transparent solids, oils and solutions. It reads 1.3000 to 1.7000 nD with ± 0.0002 nD accuracy and Brix from 0 to 95 %. A water-jacketed prism holds the sample at a constant temperature, and the monocular eyepiece has a zero adjustment ring for calibration. Supplied with a calibration tool kit, a sample applicator, an instruction manual and a storage case. Intended for industrial and laboratory use only, not for clinical use.
Tags:
Downloads
Application Industry
Food, dairy and beveragesPharmaceuticalEducation and researchFuels, coal and power Product Details
Specifications
Product Details
Product Details
An Abbe refractometer for measuring the refractive index and Brix of liquids, transparent solids, oils and solutions. It reads 1.3000 to 1.7000 nD with ± 0.0002 nD accuracy and Brix from 0 to 95 %. A water-jacketed prism holds the sample at a constant temperature, and the monocular eyepiece has a zero adjustment ring for calibration. Supplied with a calibration tool kit, a sample applicator, an instruction manual and a storage case.
For industrial and laboratory use only, not for clinical use.
Features
- Refractive index 1.3000 to 1.7000 nD
- Brix scale 0 to 95 %
- Accuracy ± 0.0002 nD
- Water-jacketed measuring prism for temperature control
- Adjustable eyepiece with zero adjustment ring
- Heavy-duty metal body on a vibration-free base
Applications
Sugar solution testing, chemical analysis, pharmaceutical, oil and petroleum testing, food and beverage, research and teaching laboratories.
Supplied with
- Refractometer
- Calibration tool kit
- Sample applicator
- Instruction manual
- Storage case
Specifications
Specifications
Measurement
- CalibrationZero adjustment facility
- Range1.3000 to 1.7000 nD
- Accuracy± 0.0002 nD
- Temperature compensationWater circulation prism
- Brix range0 to 95 %
- ObservationMonocular eyepiece
General
- Form factorBenchtop
- HousingHeavy-duty metal body
